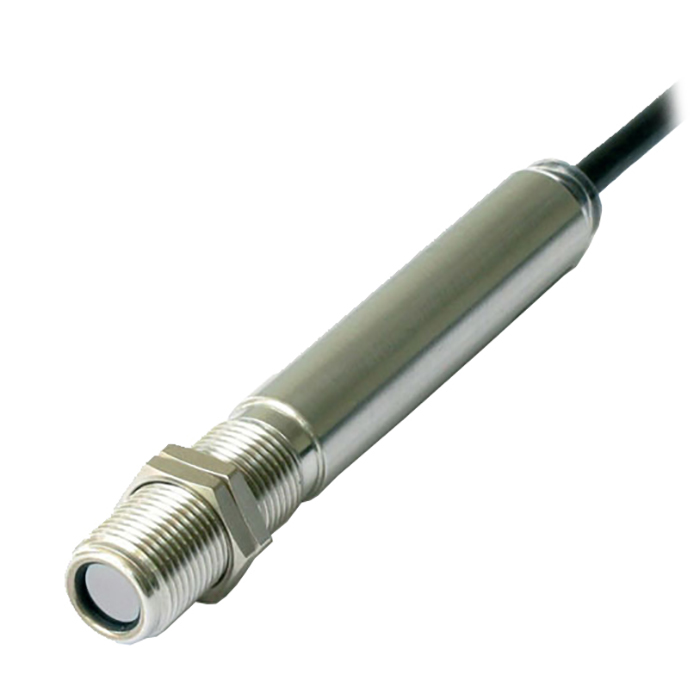

Infrared Sensor - Series PSC-CS

Compact, low cost IR thermometer packed with powerful features and value

  • Wide temperature range: -40°C to 1030°C
  • Response time: 25 ms
  • Optical Resolution 15:1
  • Green LED alarm indication, aiming support,self-diagnostic
  • Ambient temperature rating up to 80°C withoutcooling
  • Scalable analog output:
    0-10 V or 0-5 V + alarm output or digital output
  • USB programming interface, direct serial 9.6 kBaud interface
  • Wide power range 5-7, 12-28 V DC
 Infrared Sensor Series - PSC-CS

Infrared Sensor Series - PSC-CS




Technical Details

General Specifications
Environmental rating IP 63
Ambient temperature -20°C to 80°C
Storage temperature -20°C to 85°C
Relative humidity 10 - 95%, non condensing
Vibration IEC 68-2-6: 3 G, 11-200 Hz, any axis
Shock IEC 68-2-27: 50 G, 11 ms, any axis
Weight 58 g
