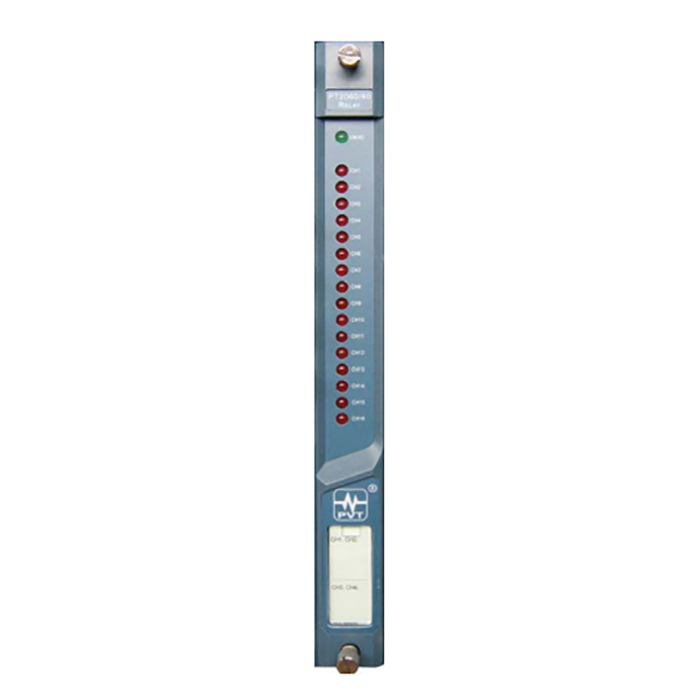

PT2060/40 RELAY Proximity Module

ProvibTech’s PT2060/40 RELAY relay module has 16 channels. Each channel on the relay module can be fully programmed to perform needed voting logic.

Similar to PLC programming, the PT2060/40 module uses AND and OR logic. Brackets can also be used. The input parameters include channels: OK, Alert, and Danger. Programming requires the PT2060CFG configuration software and the SIM system interface module for communication. The PT2060/40 can be put into any slot with any number of modules.


Alarm Option
Relay alarm can have the following options:

  • Latch, non-latching
  • Normally de-energized, normally energized
