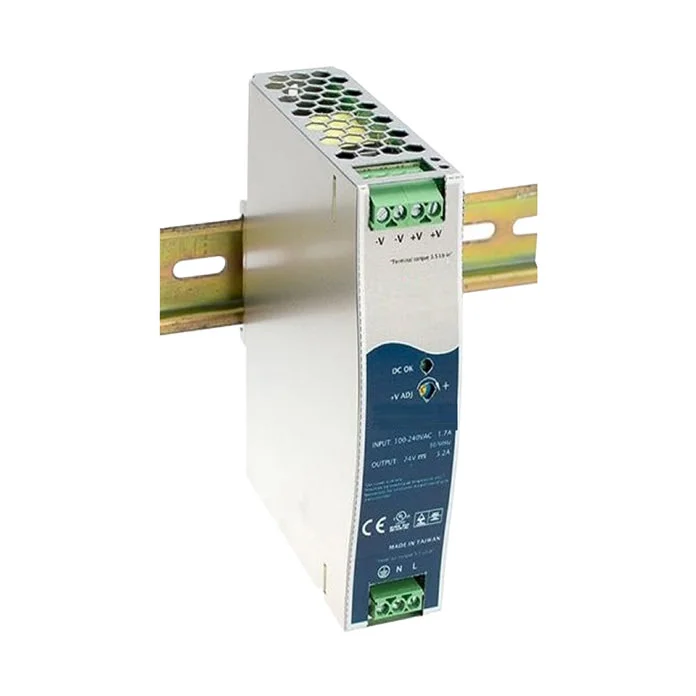

TM900A Power Converter

TM900A is 75W high efficiency slim DIN Rail Power Supply, is just 32mm in width, saving space on the rail. With 90% high efficiency, the unit can be cooled by free air convection from 30ºC to +70ºC or +60ºC at full load.

Standard functions include front panel LED indicator and DC voltage adjustment, as well as protections for short-circuit, overload (constant current mode), over voltage, and over temperature.

 Rail Mounted Power Supply - TM900A

Rail Mounted Power Supply - TM900A



Technical Details

• 32mm slim design
• Universal AC input 88~264V
• 90% high efficiency and low power dissipation.
• 70W peak power for 3 seconds
• Protection: Short circuit / Overload (constant current limiting, shut down > 3 seconds) / Over
voltage / Over temperature
• Cooling by free air convection
• Installed on DIN rail TS-35/7.5 or TS-35/15
• UL508 (industrial control equipment) compliance
• Certificate: UL / CUL / TUV / CB / CE
• Dimension(WxHxD): 32x 125.2x 102mm
• 3 year warranty
• Can power up to 10 DTMs
