Digital Process Tachometer - T77510

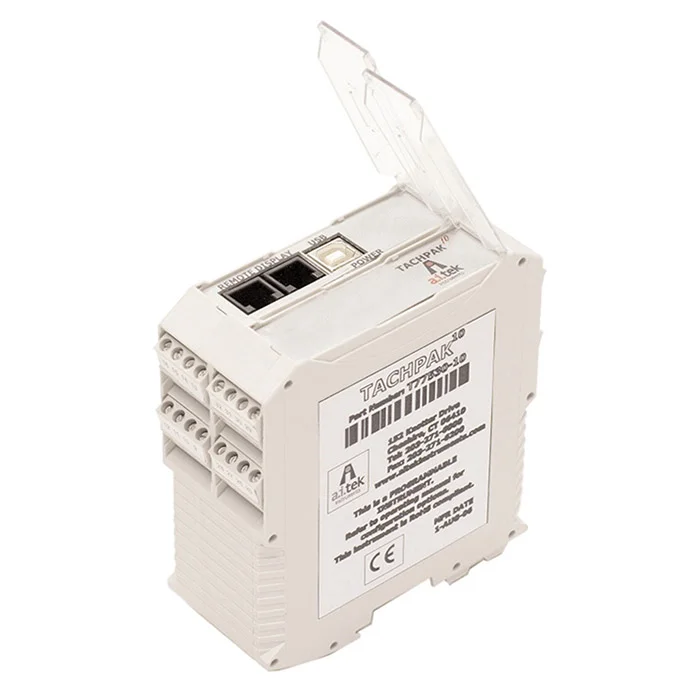

The TACHPAK 10 is a computing speed switch that also measures input frequency. This dual channel device does not include the function of converting measured quantities to solid state relays, analog output, or the utility RS485 communication.

The TACHPAK 10 accepts an extensive range of AC or DC power. These instruments have great accuracy, processing speed, response time and can be used in rate period or counter mode.

Typically, the new TACKPACK 10 is used with magnetic sensors as a signal source. However, they may receive sine wave or square wave TTL signals from any frequency source including phase-shifted frequencies from bi-directional hall sensors to indicate change in direction.

 Digital Process Tachometer - T77510

Digital Process Tachometer - T77510




Technical Details

  • Quicker Response Time – 7.6 ms (analog), 16.5 ms (mech. Relays), 2 ms (dig. Relays)
  • Higher Level of Accuracy – 0.1% (analog), 0.005% (relays)
  • Field Programmable – With TACHLINK or TACHTROL plus
  • Digital Configuration – Approaches real time
  • Analog Outputs – 0-20 mA, 4-20 mA, -20 to 0 to +20 mA
  • Relays – (2) mechanical Form C, 6 A @ 277 Vac, (2) solid state Form A 0.4A @ 60 Vac or DC
  • AC or DC Power – 80-264 Vac, 50/60 Hz; 12-30 Vdc
  • Digital Display – Will accept (8) TACHTROL plus remote displays
  • 9 Computed Functions

Product Information

Applications

  • Printing, Textile, Pulp & Paper
  • Petrochemical Production
  • Food Processing
  • Fast Response Overspeed Shutdown
  • 2 Channel Speed/Draw Monitor
  • Bi-directional Tachometer
  • Reverse Rotation Alarm
  • Low Speed Tachometer/Switching
  • Clutch Slip Alarm
  • Winder Control
  • Ahead/Astern Marine Tachometer
  • Expanded Analog Scale Speed Transmitter
  • Counter
  • Flow Rate Monitor
  • Process Time Monitor
  • Time per Event Monitor
  • Autoranging Tachometer
  • Computer Signal Conditioner
  • Averaging Tachometer
  • Line Frequency Monitor 60.00 Hz/400.00 Hz
  • RS485 Speed Transmitter
  • Turbine Speed Monitor/Control
